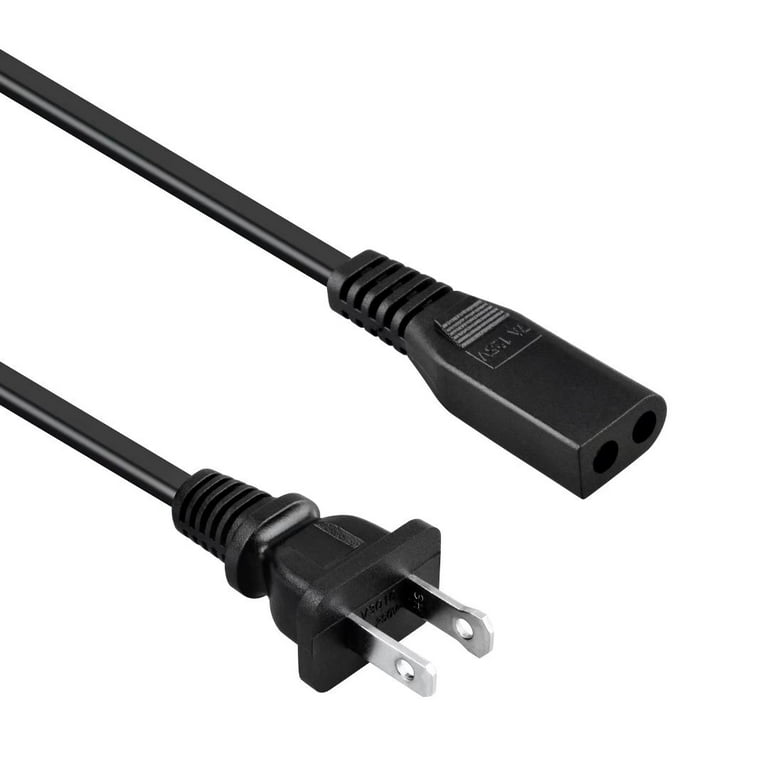

• The posted image is a representative image
• It is extremely versatile, so it is widely used in power cords such as retractable vacuum cleaners. Excellent flexibility and processability for easy identification of lines. Can be used as a power cord for small appliances with less than 300 V for indoor use. (*0.01 - 0.02 inch (0.3 - 0.5 mm2) should be used with circuits less than 100 V. )

Quantity: 1
Size: 0.16 x 0.02 inches (4 x 0.5 mm)
Number of cores: 4
Total Length: 98.8 ft (30 m)
Rated voltage: less than 100V
Conductor Composition: 0.07 in (20 mm) / 0.007 in (0.18 mm)
Conductor outer diameter: 0.04 in (0.9 mm)
Insulation Standard Thickness: 0.02 inches (0.5 mm)
Sheath Standard Thickness: 0.04 inch (1 mm)
Finished outer diameter: 0.26 inches (6.6 mm)
Product Weight: 13.5 lbs (62 kg) / 13.5 lbs (62 kg)
Handle dimensions (inner diameter): 9.4 inches (240 mm)
Handle dimensions (outer diameter): 14.2 inches (360 mm)
Handle Dimensions (Height): 3.1 inches (80 mm)
Operating temperature (max): 60
Operating temperature (minimum temperature): (fixed - 47°F (25°C), (movement) - 59°F (15°C).
Allowable Current (A): 5
Conductor resistance (Ω/km): 37.8
Bending radius (above): 1.6 inches (40 mm)
Pusher Wrap: -
Interior: -
RoHS Directive (10 Substances): Yes
It is extremely versatile, so it is widely used in power cords such as retractable electric vacuum cleaners.
Excellent flexibility and processability for easy identification of lines.
Shrink wrapped for 328 inches (0.3 mm) 2 - 20 core, 0.5 mm 2 - 16 core, 0.75 mm 2 - 8 core, 1.25 mm 2 - 7 core, 2 mm 2 - 7 core, 3.5 mm 2 - 4 centers.
Can be used as a power cord for small appliances with less than 300 V for indoor use. (*0.01 - 0.02 inch (0.3 - 0.5 mm2) should be used with circuits less than 100 V. )
